CANchecked MFD32 Gen2 for BMW G30/31/38 F90 5 Series

The CANchecked MFD32 Gen2 is a premium digital display designed specifically for the BMW G30, G31, G38 5 Series and F90 M5. Available in both left-hand drive (LHD) and right-hand drive (RHD) versions, it offers professional-grade data monitoring and full CAN Bus integration while maintaining an OEM+ appearance inside your BMW’s interior.

At its core is a 3.2" TFT capacitive touchscreen housed in a milled aluminium front frame, delivering a crystal-clear display with robust durability. The symmetrical design allows for 90° rotation, so you can set up the display in either landscape or portrait orientation to suit your driving preferences.

Unlike fixed factory systems, the MFD32 Gen2 is fully customisable using CANchecked’s DSS (Display Setup Software). Configure up to 10 pages, with 64 widgets per page, for ultimate flexibility. Whether you want to monitor boost, AFR, oil/fuel pressure, EGT, intake temps or ignition timing, you can create custom layouts to suit road, dyno or track use.

With support for up to 128 sensors across CAN Bus and internal inputs, the MFD32 gives you full visibility over your engine and vehicle parameters. Four analogue inputs allow you to connect additional sensors, such as oil pressure, fuel pressure or exhaust temperature probes, for an even deeper level of data. For advanced users, the unit also includes a CAN Bus Logger for data recording and reverse engineering, plus CAN Bus Switching functionality for controlling external devices.

Key Features

• 3.2" TFT capacitive touchscreen with crisp and responsive display

• Premium build quality – CNC-milled aluminium front frame

• Symmetrical design for 90° rotation (landscape or portrait)

• Fully customisable with DSS software – up to 10 pages / 64 widgets per page

• Supports up to 128 sensors via CAN Bus and internal inputs

• 4 analogue inputs for additional external sensors

• Optional external shift light integration

• CAN Bus Switching functionality for external device control

• Built-in CAN Bus Logger for recording and analysis

• Compact installation (95 x 69mm) with 3x M4 threaded mounting points

Supported Protocols & Connectivity

The MFD32 Gen2 is compatible with ISO 11898-2 and SAE J2284 standards, making it fully adaptable to BMW’s CAN Bus systems. It also supports broadcast data, OBD2 queries via CAN Bus (11bit/29bit), plus manufacturer-specific protocols such as TP2.0 (VW/Audi) and UDS, ensuring wide functionality.

Its capabilities can be expanded with optional CANchecked hardware, including:

• CANchecked Sensors – water/oil temp, oil/fuel pressure, etc.

• CAN Bus Extension (MCE18) – expand sensor integration

• CAN Bus Hub (CBD08) – for multiple CAN devices

Dimensions & Mounting

• Installation dimensions: 95 x 69mm

• Mounting: 3x M4 threaded sockets for secure attachment

• Orientation: Portrait or landscape via symmetrical design

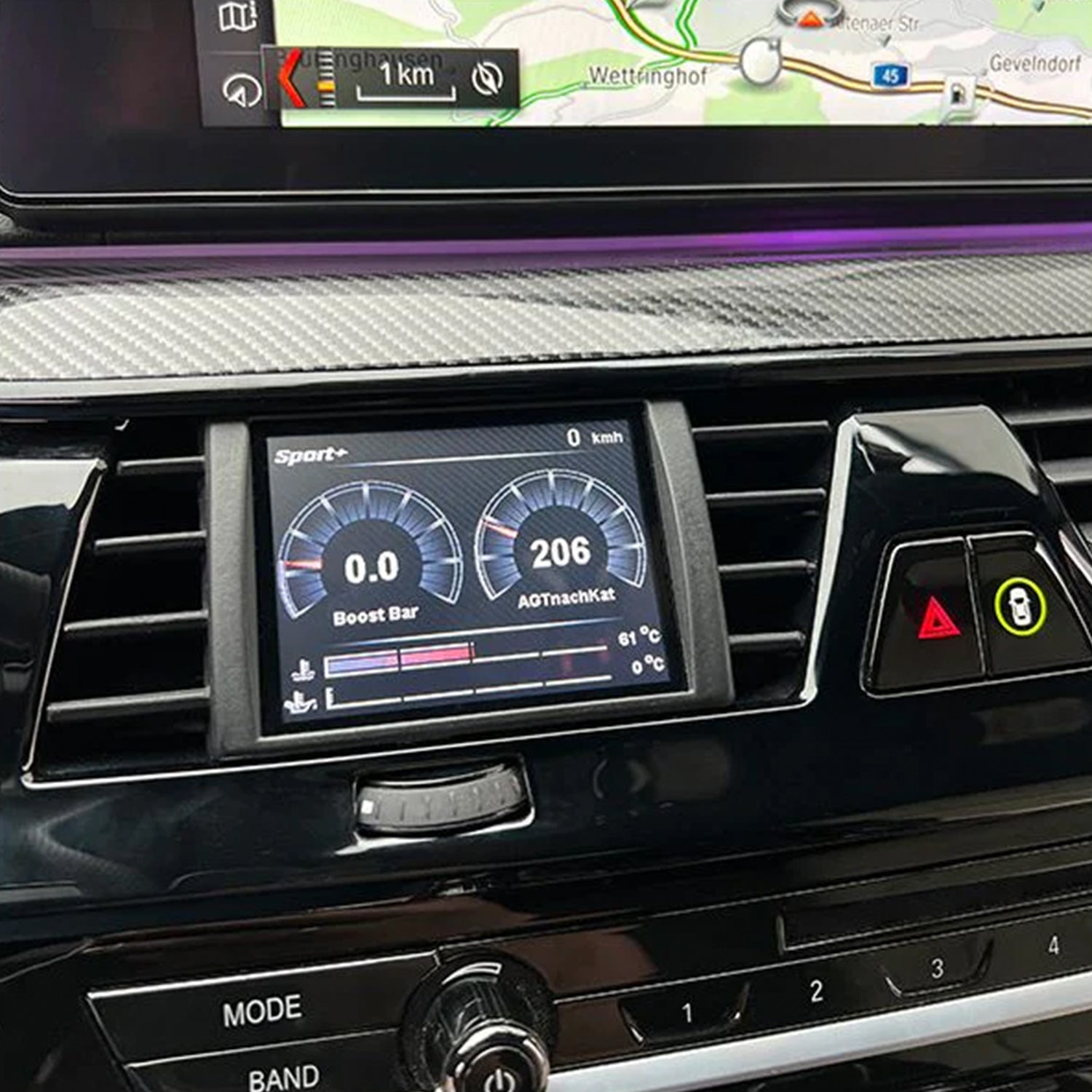

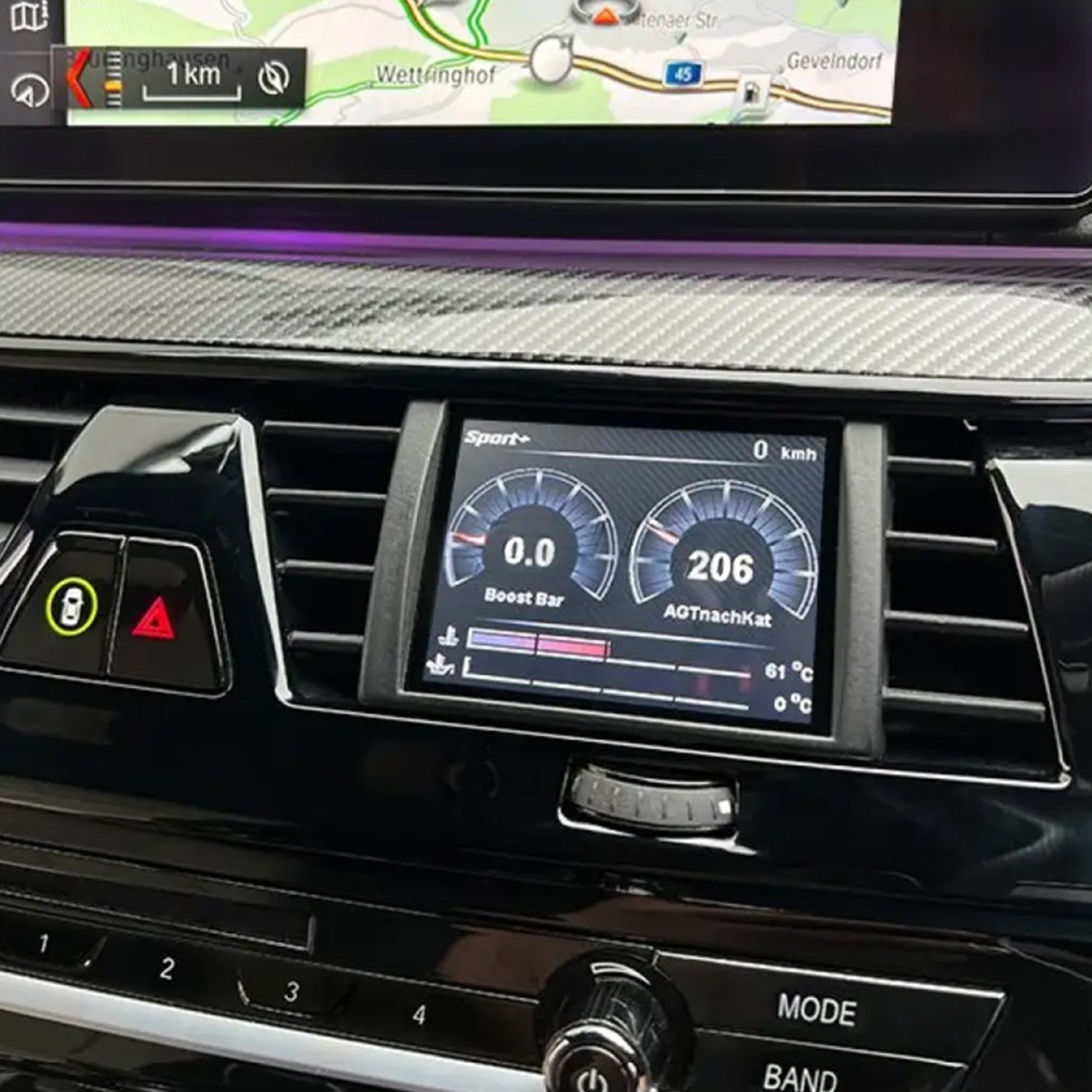

Installation is straightforward, and the display is designed to integrate neatly into the BMW 5 Series (G30, G31, G38) and M5 (F90).

Compatibility

BMW 5 Series (2017+)

• G30 – 5 Series Saloon

• G31 – 5 Series Touring

• G38 – 5 Series Long Wheelbase

• F90 – M5

Available in LHD & RHD versions.
