CSF High-Performance Bar & Plate Intercooler Core 20x12x3

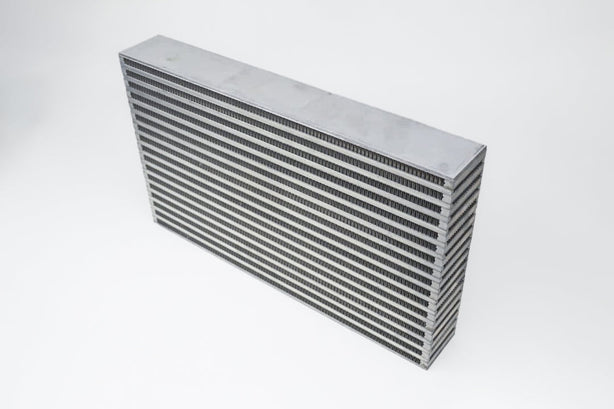

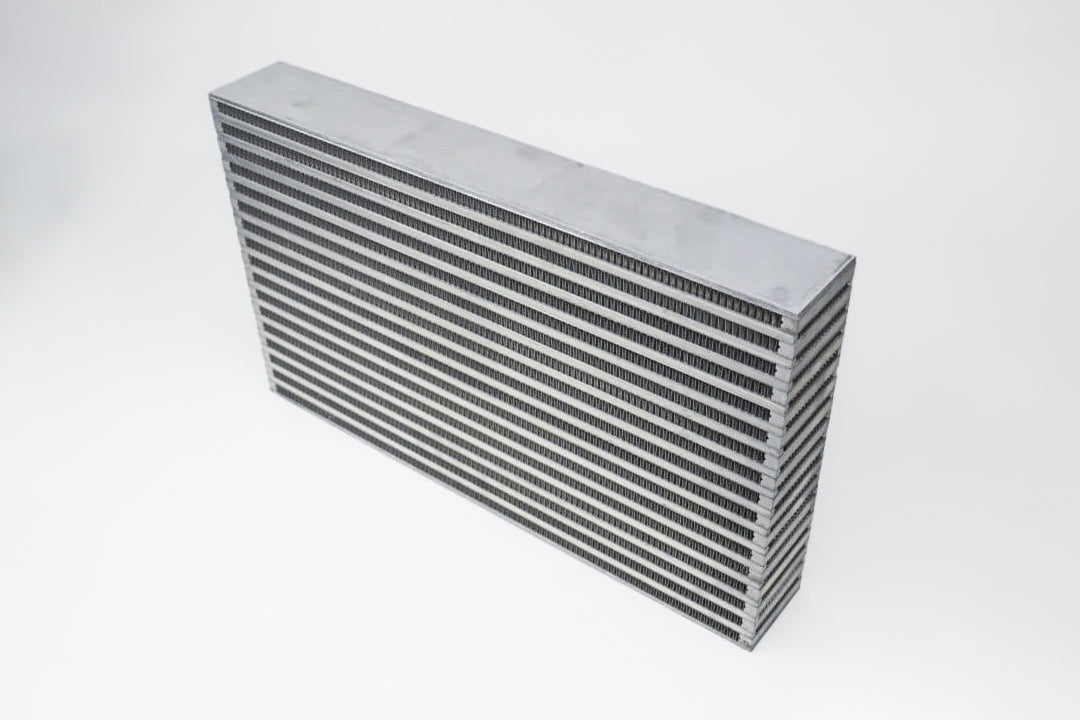

The CSF High-Performance Bar & Plate Intercooler Core, measuring 20" x 12" x 3", represents a premium solution engineered for demanding automotive applications. Designed to accommodate up to 700 WHP, this horizontal flow core is an ideal choice for custom high-performance intercooler assemblies, delivering superior cooling efficiency and durability. Each unit undergoes rigorous pressure testing at 120psi to guarantee maximum reliability under extreme boost conditions, ensuring consistent performance even in the most challenging environments.

Manufactured with meticulous attention to detail, the CSF intercooler core is hand-built using precision jigs and fixtures to maintain a perfectly straight structure, facilitating straightforward welding and installation. The assembly process takes place in a controlled clean room environment within the CSF factory, where technicians employ gloves to preserve the integrity of the brazing surfaces and ensure a contaminant-free finish. This careful craftsmanship results in a core that not only performs exceptionally but also meets stringent quality standards required for professional tuning and racing applications.

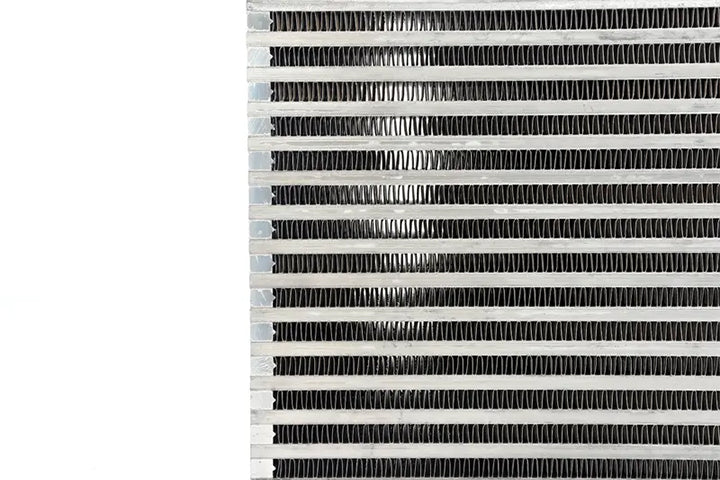

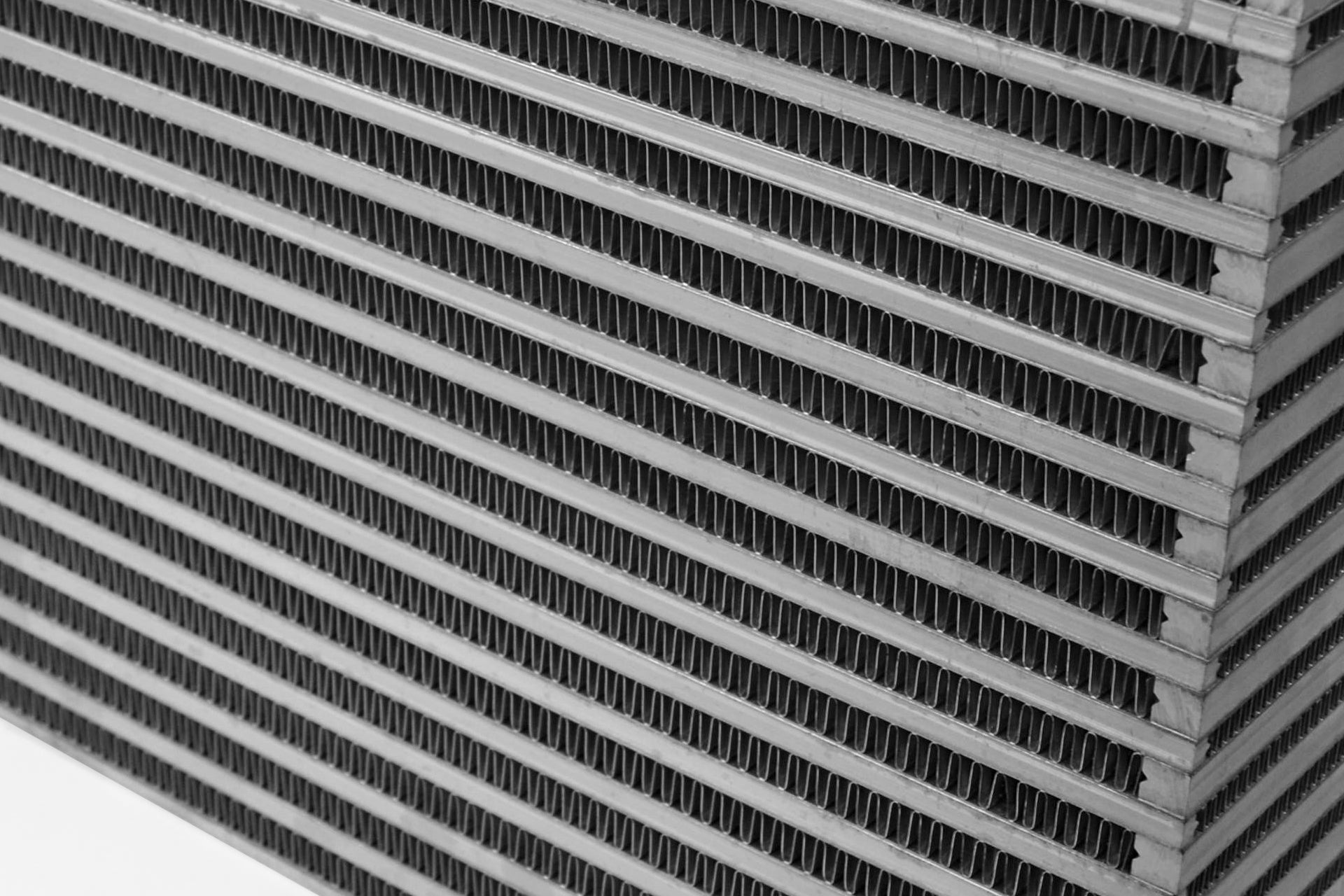

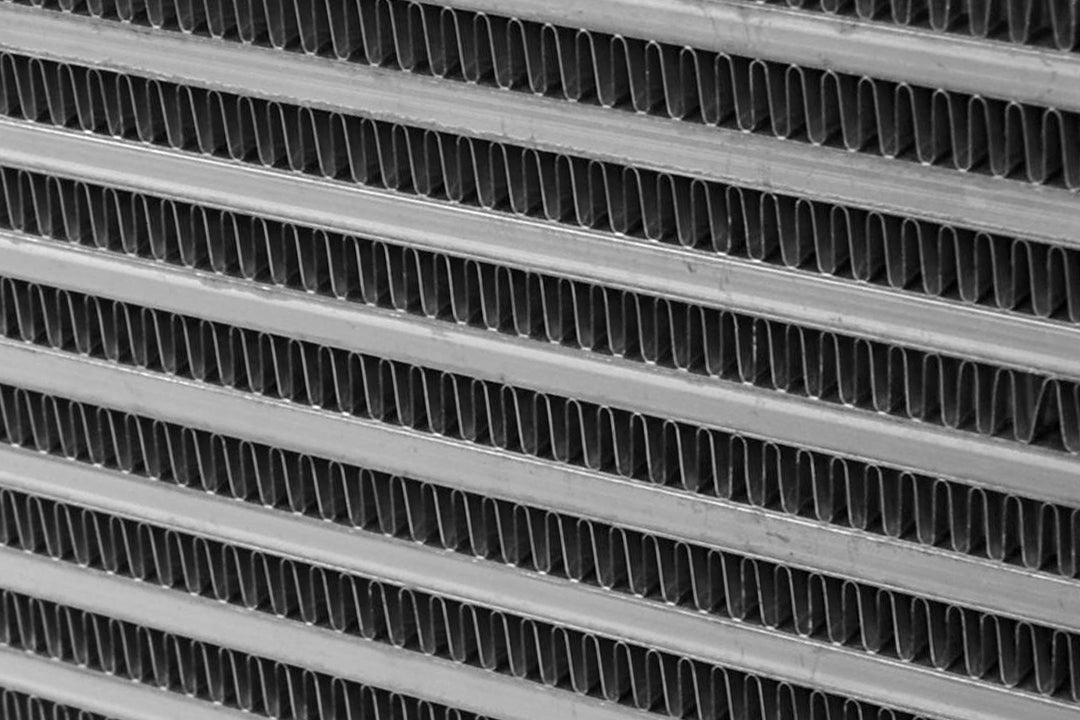

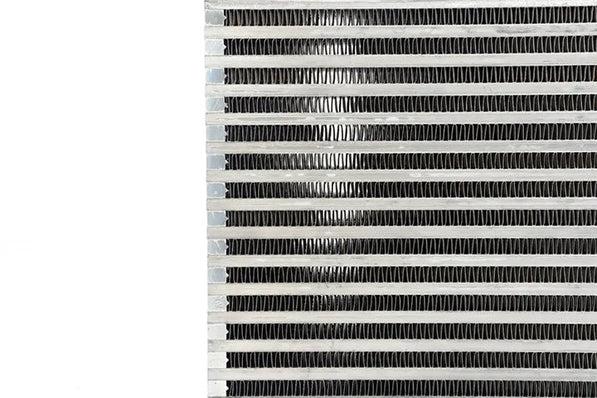

One of the defining features of this intercooler core is its multi-louvered, high-precision staggered fin design. This configuration is applied to both the ambient and pressure sides of the core, optimizing heat transfer and enhancing thermal management. The staggered fins increase the surface area and promote turbulent airflow, which significantly improves the cooling efficiency and helps maintain lower intake air temperatures. This design advantage contributes to improved engine performance, increased power output, and enhanced reliability during high-load operation.

Features

• Heavy-Duty Bar & Plate Construction for Enhanced Strength and Durability
• Pressure Tested at 120psi to Ensure Maximum Reliability in Extreme Boost Applications
• Hand-Built Using Precision Jigs & Fixtures for a Perfectly Straight Core, Simplifying Welding and Installation
• Manufactured in a Clean Room Environment with Gloved Handling to Guarantee Proper Brazing and Clean Surfaces
• Multi-Louvered High Precision Staggered Fin Design on Both Ambient and Pressure Sides for Superior Heat Transfer
• Batch Brazed in CSF’s Advanced Digital Vacuum Brazing Ovens (12 Ovens in Total), Ensuring Consistent Quality
• Strict Quality Control Measures Including Individual Pressure Testing for Each Core
• Individually Boxed and Securely Packaged for Safe Transport via Single Piece Mail Services
• Dimensions: 20"x12"x3" (505mm x 300mm x 75mm)
• Rated for 700 Horsepower (WHP)
• Cross-Flow Design for Optimal Air Distribution and Cooling Efficiency

Applications

OEM Part Numbers

• *Universal

Warranty

Cooling Systems and Flexibles, Inc. (CSF) provides a comprehensive warranty for its High-Performance Cooling Systems. Under normal use and service, the warranty covers the original purchaser of the vehicle in which the product was initially installed. This commitment reflects CSF’s confidence in the durability and reliability of their products. For detailed warranty information, please refer to the Warranty Page.

SKU# 8056 Warranty Term: 2 years
