CSF High-Performance Bar & Plate Intercooler Core 27x6x6 - Vertical Flow

The CSF High-Performance Bar & Plate Intercooler Core 27x6x6 - Vertical Flow represents a pinnacle of engineering excellence and reliability in the realm of automotive cooling solutions. Designed for demanding high-performance applications, this intercooler core is trusted by leading tuning and performance companies worldwide for its superior construction and consistent performance under extreme conditions.

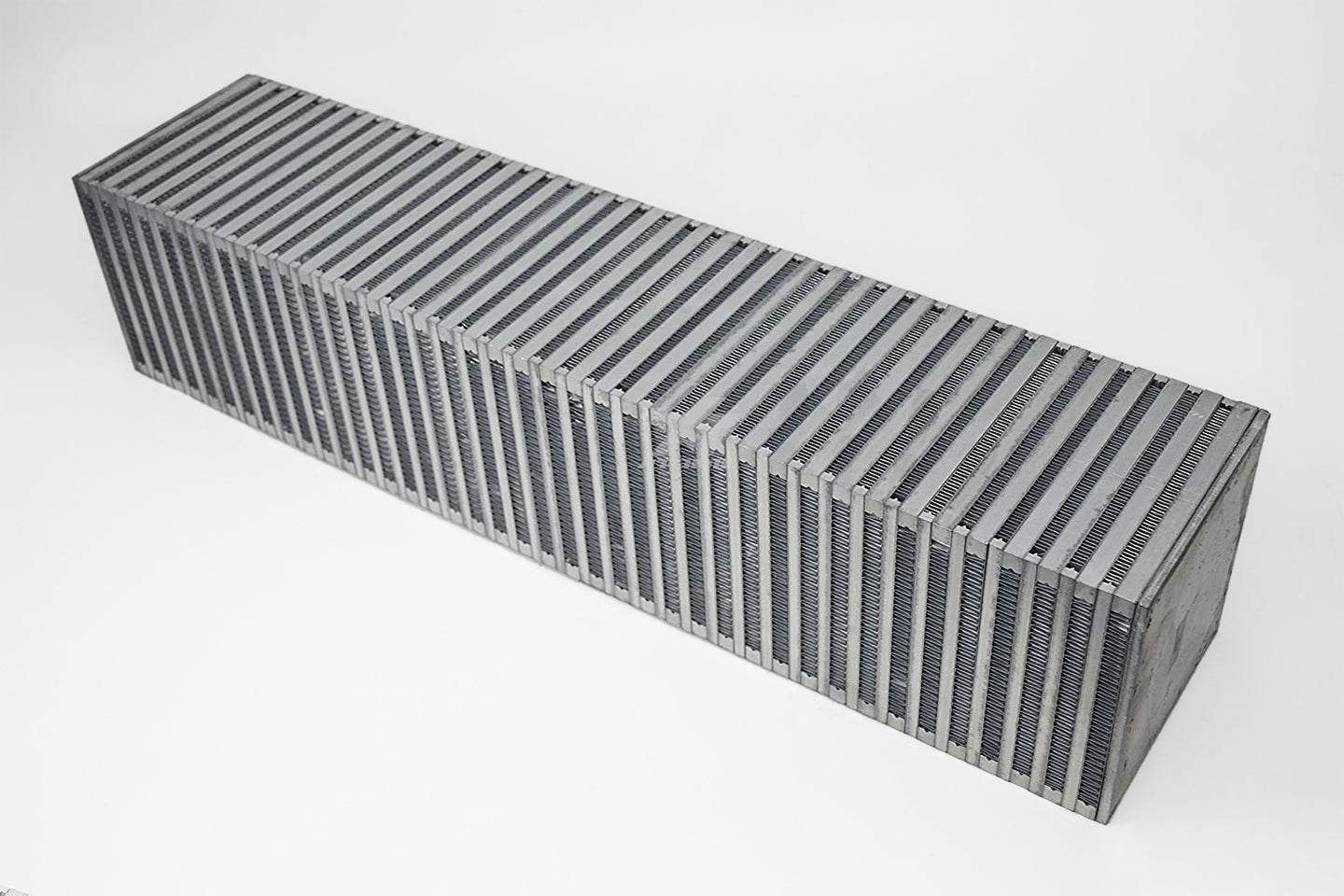

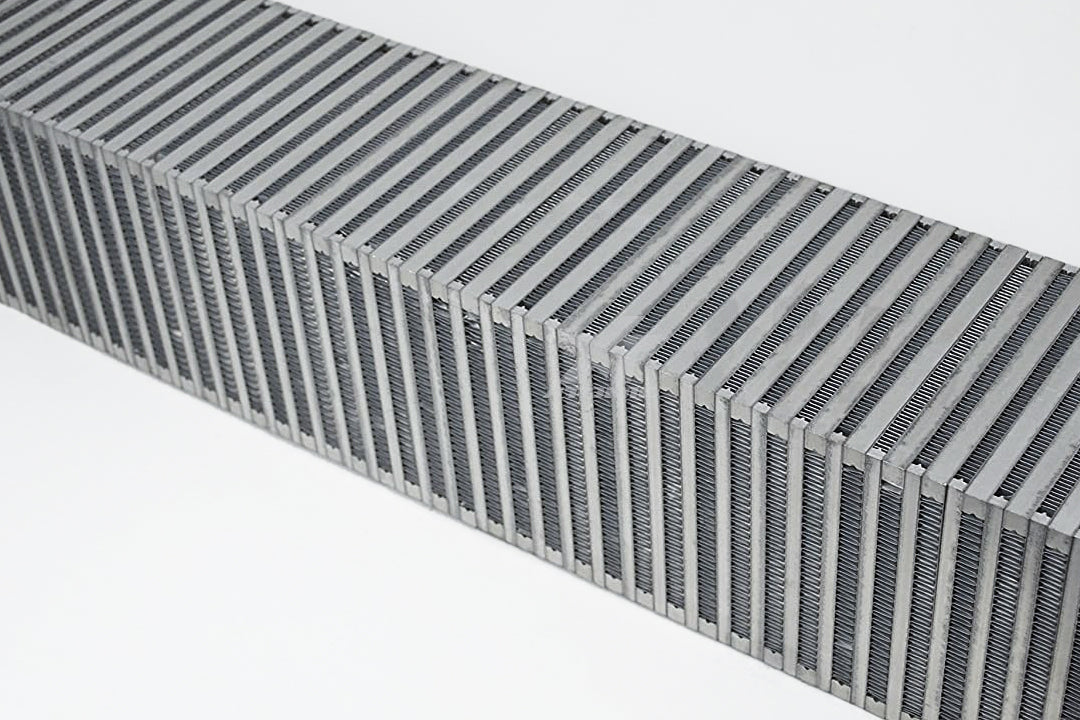

Measuring 27" x 6" x 6" (685mm x 150mm x 150mm), this vertical flow core is engineered to support up to 1400 WHP, making it an ideal choice for custom intercooler builds that require uncompromising efficiency and durability. The core’s robust bar and plate design ensures exceptional heat dissipation, critical for maintaining optimal intake air temperatures during high-boost scenarios.

Each CSF intercooler core undergoes rigorous quality assurance processes to guarantee its performance and longevity. Pressure tested at 120psi, the core withstands extreme boost pressures without compromising structural integrity. This testing protocol ensures maximum reliability, a vital attribute for high-performance and racing environments where failure is not an option.

Manufacturing precision is a hallmark of CSF products. This intercooler core is hand-built within a controlled clean room environment, utilizing specialized jigs and fixtures to achieve a perfectly straight core. The assembly process is conducted with gloves to maintain a pristine surface, which is essential for proper brazing and facilitates future welding operations. This meticulous attention to detail results in a product that not only performs exceptionally but also integrates seamlessly into custom setups.

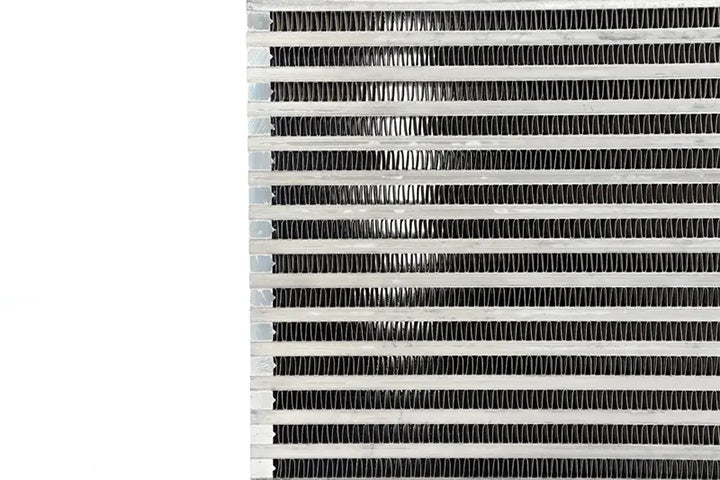

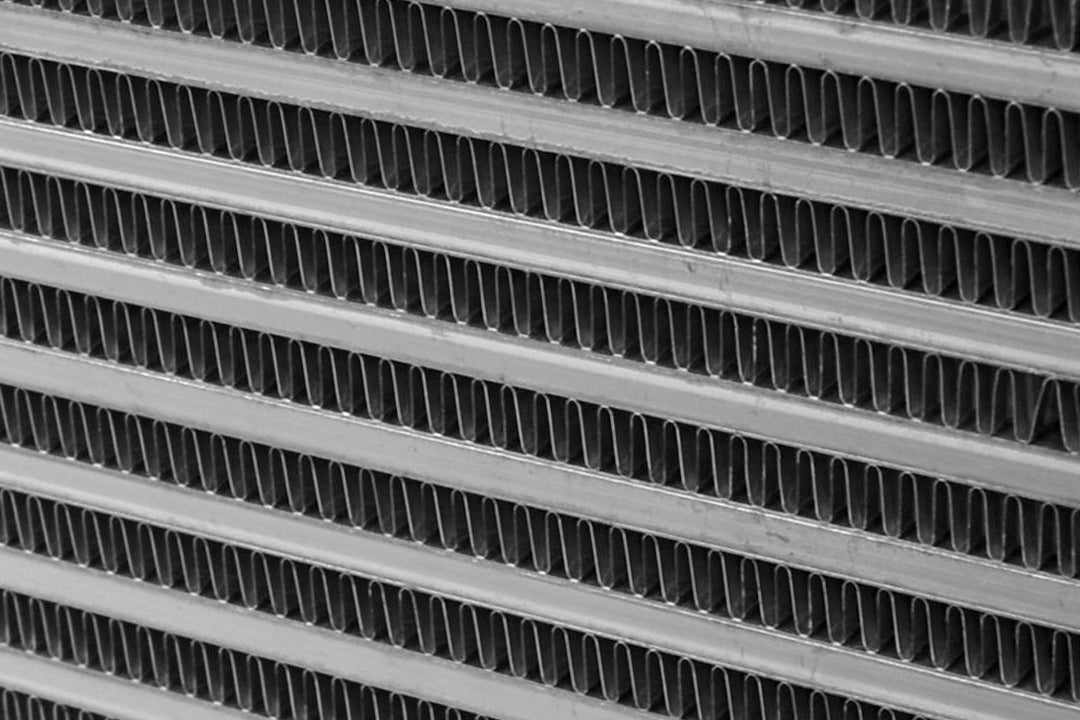

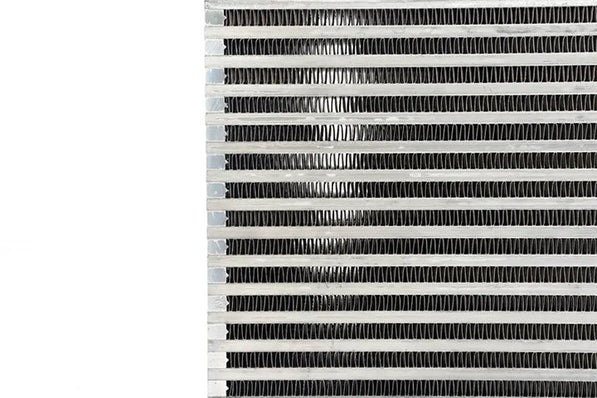

The core features a multi-louvered, high-precision staggered fin design on both the ambient and pressure sides. This advanced fin configuration optimizes heat transfer efficiency, ensuring that the intercooler effectively reduces intake air temperatures, thereby improving engine performance and reliability.

CSF employs state-of-the-art digital vacuum brazing ovens—12 in total—to batch braze each core. This modern brazing technique enhances the structural strength and thermal conductivity of the core, contributing to its exceptional durability and heat dissipation capabilities. Every unit is subject to strict quality control measures and individual pressure testing, underscoring CSF’s commitment to delivering products that meet the highest industry standards.

Features

• Heavy-Duty Bar & Plate Intercooler Cores engineered for high-performance applications
• Pressure Tested at 120psi to ensure maximum reliability under extreme boost conditions
• Hand-Built using precise jigs & fixtures for a perfectly straight core, facilitating easy welding and installation
• Manufactured in a clean room environment with glove handling to guarantee proper brazing and maintain a clean surface for future welding
• Multi-Louvered High Precision Staggered Fin Design on both ambient and pressure sides for optimal heat transfer
• Batch Brazed in CSF's advanced digital vacuum brazing ovens for superior strength and thermal efficiency
• Strict Quality Control including individual pressure testing to ensure product reliability
• Individually boxed and protected to secure transport via single piece mail services
• Dimensions: 27"x6"x6" (685mm x 150mm x 150mm)
• Horsepower Rating: 1400 WHP
• Vertical Flow configuration suitable for diverse custom applications

Applications

OEM Part Numbers

• *Universal

Warranty

Cooling Systems and Flexibles, Inc. (CSF) provides a warranty for their High-Performance Cooling Systems under normal use and service to the original purchaser of the vehicle in which the product was installed. This warranty reflects CSF’s confidence in the durability and quality of their products. For comprehensive warranty details, please visit the Warranty Page.

SKU# 8055 Warranty Term: 2 years

In conclusion, the CSF High-Performance Bar & Plate Intercooler Core 27x6x6 - Vertical Flow is a meticulously engineered component designed to meet the rigorous demands of high-output engines. Its combination of advanced manufacturing techniques, stringent testing, and superior materials ensures that it delivers reliable, efficient cooling performance critical for maximizing engine power and longevity. This intercooler core is an excellent investment for professionals and enthusiasts seeking a dependable and high-quality cooling solution for their custom high-performance applications.
